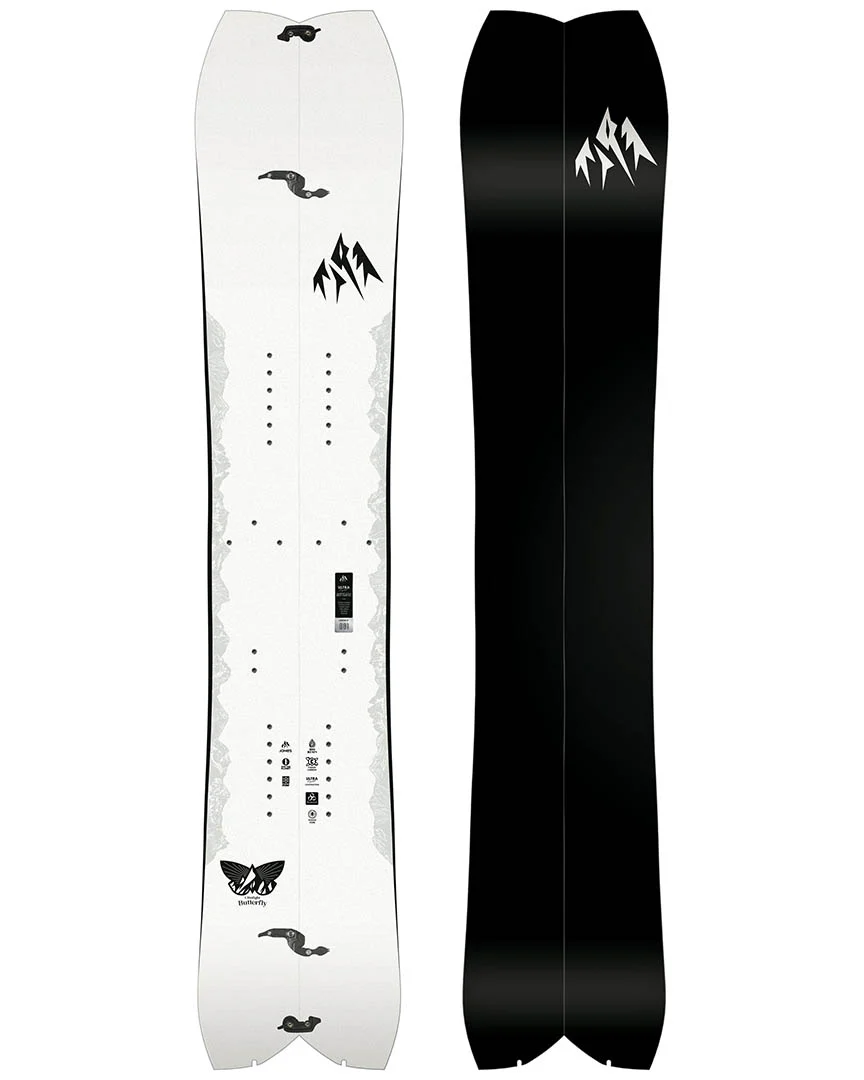

Ultralight Butterfly Splitboard 2027
The ultralight, technical objective splitboard
Ideal for high alpine expeditions and technical backcountry touring
The Ultralight Butterfly Split is an ultralight split with a compact shape that's made for high alpine pursuits where the balance of weight and performance are hyper critical. By reducing the tip and tail size, but keeping the contact points pushed out, the Butterfly Split has a super long effective edge which maximizes edge power in variable alpine conditions.
Note: The Butterfly is designed to be ridden 4-6 cm shorter than your standard freeride board.
Details
Rocker Type: True Camber – A traditional full camber profile that offers the insane edge response of camber without the usual hang-ups.
Flex: Directional Flex Pattern, Flex Rating – 8 (1 Soft - 10 Stiff), Forever Flex
Shape: 3D Contour Base 3.0, Progressive Sidecut, Blunt Nose, 8mm Taper, Double Radius Tips
Core: Koroyd® Core, Fusion Core - is Jones' lightest wood core
Laminates: Ultra Construction, Fusion Carbon, Fiberglass Reinforcement
Sidewalls: Recycled Rounded ABS
Base: Ultra Base - 25% better wax absorption
Edges: Inside and Outside Traction Tech, Inner Thin Recycled Edges, Outer Oversized Recycled Edges
Topsheet: Ultralight ECO-Topsheet

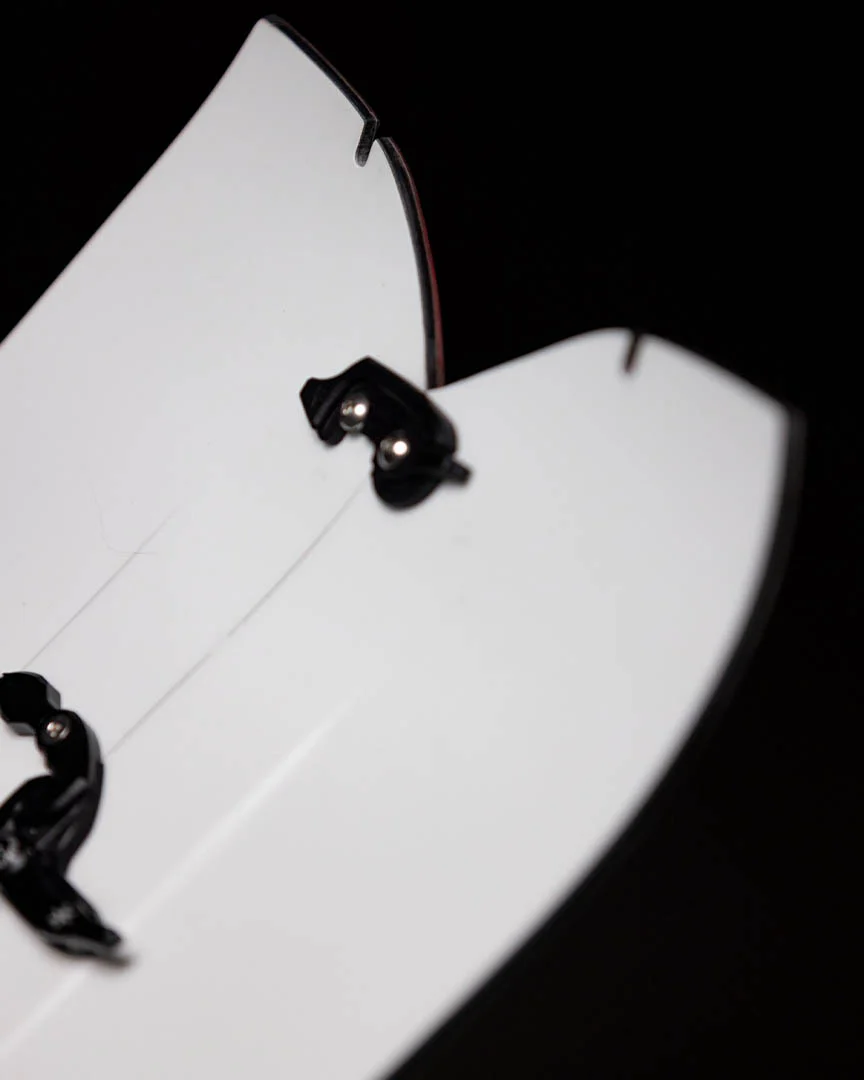

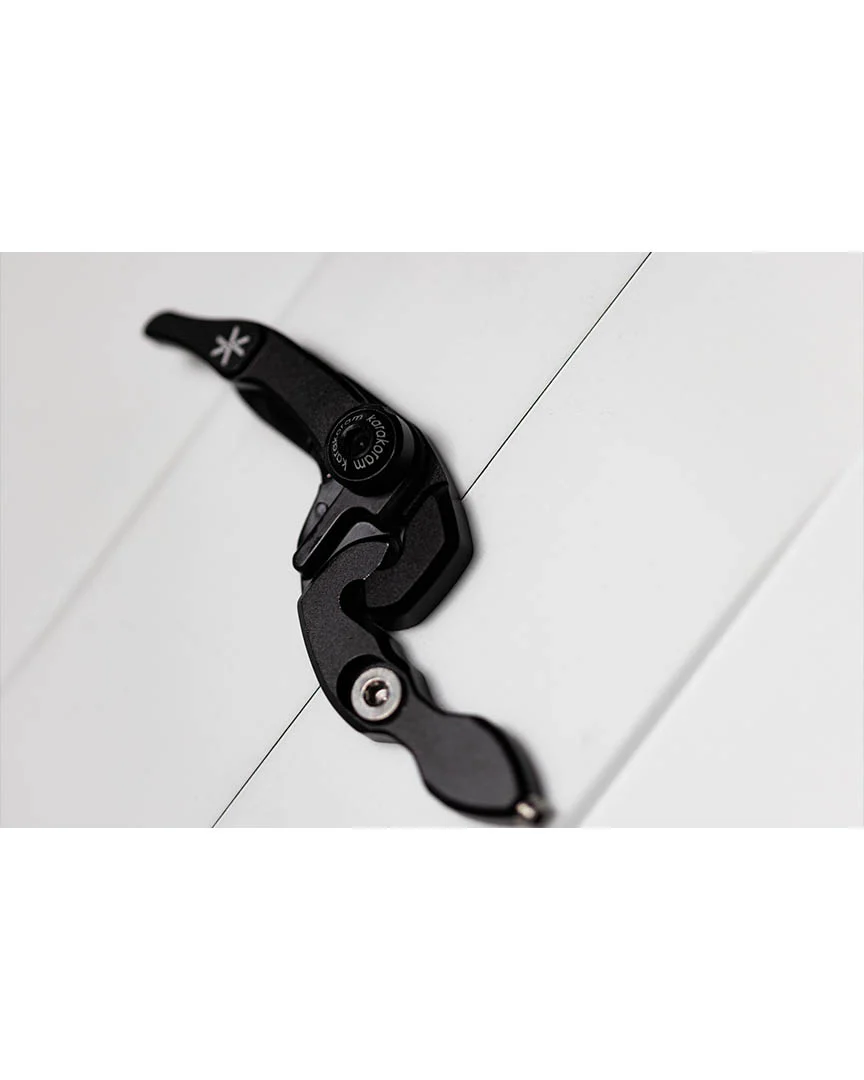

Additional Features: Karakoram Ultra Clips 3C with Tips Lock, Bolt-Less Bridge, Quick Tension Tail, Bio Resin, Factory Tuned, Wend Natural Wax
Stainless steel reinforcement: Stainless steel plates are embedded into the nose and tail for improved board tip durability.
Binding Compatibility: Standard Splitboard Insert Pattern
Specs
- Terrain: Splitboard
- Ability Level: Advanced-Expert
- Rocker Type: Camber
- Shape: Directional Twin
- Flex Rating: Stiff
- Core/Laminates: Carbon, Koroyd®, Wood
- Warranty: 3 Years
Ultralight Butterfly Splitboard specifications
| Board Size (cm) | 150 | 154 | 158 |
|---|---|---|---|
| Board Weight | 2,5kg / 5,5lbs | 2,7kg / 5,94lbs | 2,8kg / 6.17 lbs |
| Surface Area (dm2) | 40,05 | 41,62 | 43,22 |
| Contact Length (cm) | 116,6 | 120 | 123,4 |
| Effective Edge Length (cm) | 123,6 | 127 | 130,4 |
| Tip Length (cm) | 20,2 | 20,5 | 20,8 |
| Tail Length (cm) | 13,2 | 13,5 | 13,8 |
| Waist Width (cm) | 25,3 | 25,6 | 25,9 |
| Underfoot Width - Front Foot (cm) | 26,23 | 26,565 | 26,97 |
| Underfoot Width - Rear Foot (cm) | 26,31 | 26,643 | 27,046 |
| Tip Width (cm) | 29,9 | 30,3 | 30,69 |
| Tail Width (cm) | 29,1 | 29,5 | 29,89 |
| Sidecut Radius (m) | 8,5 | 8,8 | 9,1 |
| Taper (cm) | 0,8 | 0,8 | 0,8 |
| Reference Stance (cm/in) | - | - | - |
| Centered Stance (cm/in) | 52 / 20,4 | 54 / 21,2 | 58 / 22,8 |
| Insert Pack | Standard Pack | Splitboard Pack | Splitboard Pack |
| Stance Setback (cm) | 3 | 3 | 3 |
